Kontaktas papildomas 1co NSX automatams - SCHNEIDER ELECTRIC

Kontaktas papildomas 1co NSX automatams - SCHNEIDER ELECTRIC

Elektrobalt prekės kodas
004991
EAN kodas
3303430294504
Gamintojo prekės kodas
29450

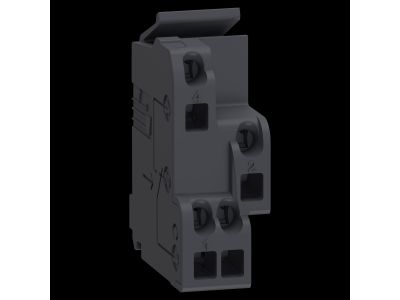

Reali prekė gali skirtis nuo pavaizduotos nuotraukoje

Produkto informacija

It is a single standard auxiliary contact that provides all the different indications remotely for Compact NSX, Compact NS, PowerPact Multistandard and EasyPact CVS circuit breakers. Remote status information are ON/OFF (OF), trip indication (SD) and fault-trip indication (SDE) for all circuit breakers types. The remote status information for trip indication due to an earth fault (SDV) is used for Compact NSX and PowerPact Multistandard. The contacts are installed in the device in dedicated slots. This auxiliary contact is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 6A and the minimum load is 100mA at 24 VDC for utilization categories are AC12/AC15/DC12/DC14. One device embeds 5 auxiliaries contact type. It complies with IEC 60947-5-1 standard.
Papildomų kontaktų blokas
  • Perjungimo kontaktų skaičius 1
  • Gedimo signalo jungiklių skaičius 1
  • Darbinė srovė Ie 4 A
  • Pajungimo tipas Varžtinis sujungimas
  • Modelis Integruojamas
  • Montavimo būdas Kita
  • Lempos laikiklis Nėra
