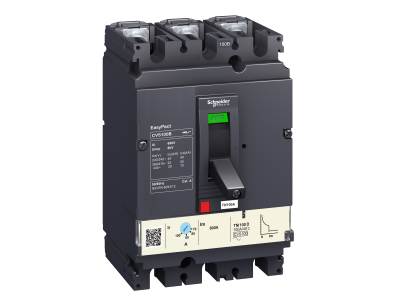

Automatas 3P 100A 25kA CVS100B TM100D - SCHNEIDER ELECTRIC

Automatas 3P 100A 25kA CVS100B TM100D - SCHNEIDER ELECTRIC

Elektrobalt prekės kodas
108007
EAN kodas
3606480220142
Gamintojo prekės kodas
LV510307
Reali prekė gali skirtis nuo pavaizduotos nuotraukoje

Produkto informacija

EasyPact CVS100B is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 100A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS100B is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
Automatinis jungiklis
  • Srovė Iu 100 A
  • Nominali įtampa 440 - 440 V
  • Nominali trumpojo jungimo atjungimo geba kai Icu 400V 50Hz 25 kA
  • Perkrovos atkabiklio reguliavimo diapozonas 800 - 800 A
  • Kontaktų jungties tipas Varžtinis sujungimas
  • Įrenginio konstrukcija Sumontuoto prietaiso fiksuoto montavimo technika
  • Polių skaičius 3
  • Maitinimo padėtis Priekinė pusė
  • Valdymo elemento tipas Jungiklis
  • Apsaugos klasė IP IP40
