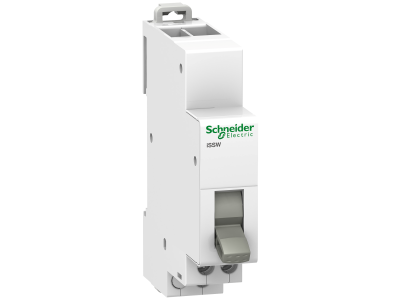

Perjungiklis 1P 20A 1-0-2 1co 1 modulio iSSW - SCHNEIDER ELECTRIC

Perjungiklis 1P 20A 1-0-2 1co 1 modulio iSSW - SCHNEIDER ELECTRIC

Elektrobalt prekės kodas
067884
EAN kodas
3606480088506
Gamintojo prekės kodas
A9E18073
Reali prekė gali skirtis nuo pavaizduotos nuotraukoje

Produkto informacija

This Acti 9 iSSW is a linear switch used for the manual control of electric circuits. It is a 3 positions switch with 1 changeover contact (1 C/O). The phase-separated wall can be divided to allow all the types of com busbar to pass through. It comes with staggered terminals to simplify connection. The tightening torque of connection is 1N.m for PZ1 screwdriver type. The Ue rated operational voltage is 250VAC. The Ie rated operational current is 20A. The operating frequency is 50Hz. The connection allows rigid copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The connection allows flexible or with ferrule copper cables from 0.5mm² minimum to 2x2.5mm2 maximum. The number of cycles open and close (O-C) is 30000. The endurance is 30000 operations with AC22 current category under cos phi=0.8. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 82mm x (D) 75mm. The pollution degree is 3. The tropicalization is treatment 2 (relative humidity 95% at 55°C). The operational temperature is from -20°C to +50°C. The storage temperature is from -40°C to +70°C. It complies with IEC 60669-1 and IEC 60947-5-1 standards.
Pagrindinis jungiklis skirstymų dėžei
  • Jungiklio funkcija Perjungiklis
  • Perjungimo kontaktų skaičius 1
  • Polių skaičius 2
  • Nominali srovė 20 A
  • Nominali įtampa 250 V
  • Minimali įtampa 250 V
  • Įtampos tipas Kintamoji srovė
  • Rankenėlės spalva Baltas
  • Modulių skaičius 1
  • Gylis 75 mm
  • Apsaugos klasė IP IP40
